Product Description

Key Highlights

Pixel Pitch: 4mm indoor application with high resolution
Visual Performance: Eye-catching display with high contrast ratio
LED Lamp Bead: Premium SMD2121
Refresh Rate: High refresh rate up to 3800Hz
Module Size: 320mm x 160mm (80 x 40 dots)

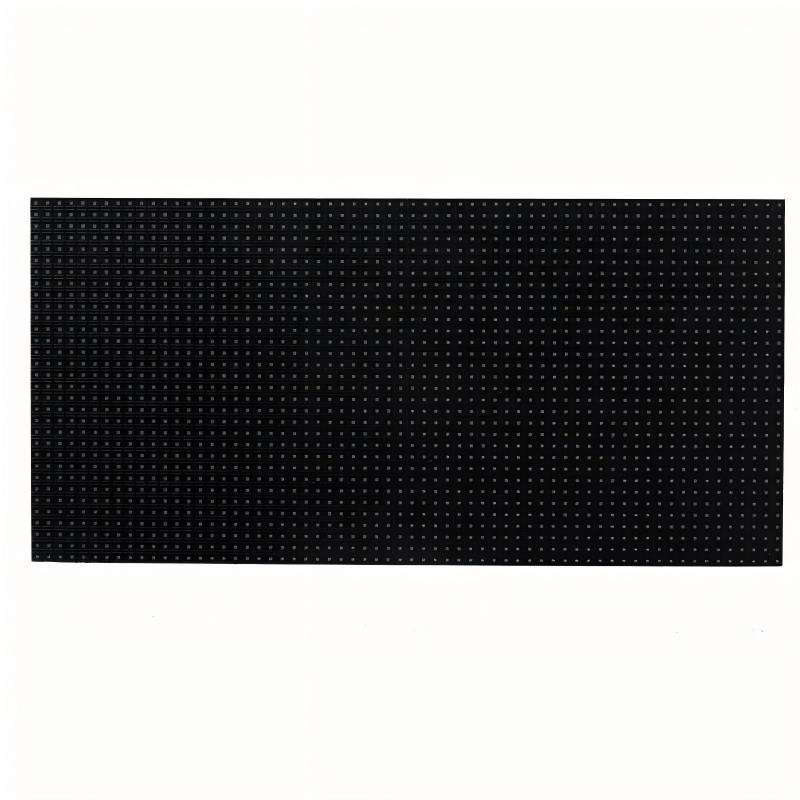

The P4 indoor LED display module panel adopts high-refresh-rate chips to ensure smooth and eye-catching visual performance. With a compact module size of 320x160mm and a resolution of 80x40 dots, this LED display offers high-definition clarity and exceptional visual effects. Featuring a pixel pitch of 4mm and a pixel density of 62,500 dots per square meter, it provides wide viewing angles and highly precise imaging.

Video Demonstration

P4 LED Indoor Module Specifications

Color	Package	Intensity	View Angle	Wavelength	Test Conditions
Red	SMD 2121	150mcd	140/140	620nm	25°C, 20mA
Green	SMD 2121	400mcd	140/140	520nm	25°C, 20mA
Blue	SMD 2121	100mcd	140/140	470nm	25°C, 20mA
Module Physical Specifications
Resolution			80(H) × 40(V)
Pitch			4mm
LED Arrangement			SMD2121
Driver Mode			Dynamic 1/20 Duty constant current
Size			320mm × 160mm
Mask			Pure Black mask-high contrast screen
Electricity Parameter
Brightness			800-1000 (Nits)
View Angle			140-degree (horizontal) / 140-degree (vertical)
View Distance			4m - 40m
Gray Scale			8bits input, correction with 16bits
Display Color			16.7M
Brightness Adjustment			100 levels
Power Supply Parameters
Operation Power			AC100-240V 50-60Hz Switchable
Maximum Power Consumption			700 W/m²
Average Power Consumption			300 W/m²
Control System
Correction Scale Level			16bits
Frame Update Frequency			60Hz
Screen Refresh Frequency			480-960Hz
Gamma Correction			-5.0 to 5.0
Support Input			Composite Video, S-Video, DVI, HDMI, SDI, HD-SDI
Control Distance			Ethernet cable: 100m, Optical fiber: 5km
Support VGA Mode			800×600, 1024×768, 1280×1024, 1600×1200
Color Temperature			5000-9300 adjustable
Brightness Correction			dot by dot, module by module, cabinet by cabinet
Reliability Specifications
Operating Temp.			-20 to 60 Celsius degree
Operating Humidity			10-95% RH
Operating Life			100,000 hours
MTBF			5,000 hours
Continuous Working Time			≥48 hours
Protection Level			IP40
Out of Control Pixel Rate			0.01%

What is the difference between P3 and P4 LED?

(1) Price Difference

Generally, the price of a P3 LED module is higher than that of a P4 LED module due to its higher resolution capabilities and enhanced visual clarity.

(2) Resolution details

The core difference lies in pixel density. A P3 LED panel has approximately 111,111 pixels per square meter, whereas a P4 LED panel contains 62,500 pixels. The smaller pixel pitch results in a higher density, providing closer details and sharper images.

(3) Optimal Viewing Distance

Different pixel pitches translate to different optimal viewing distances. For P3 LED screens, the optimal distance starts at 3 meters, whereas for P4 LED screens, the optimal viewing distance begins at 4 meters.

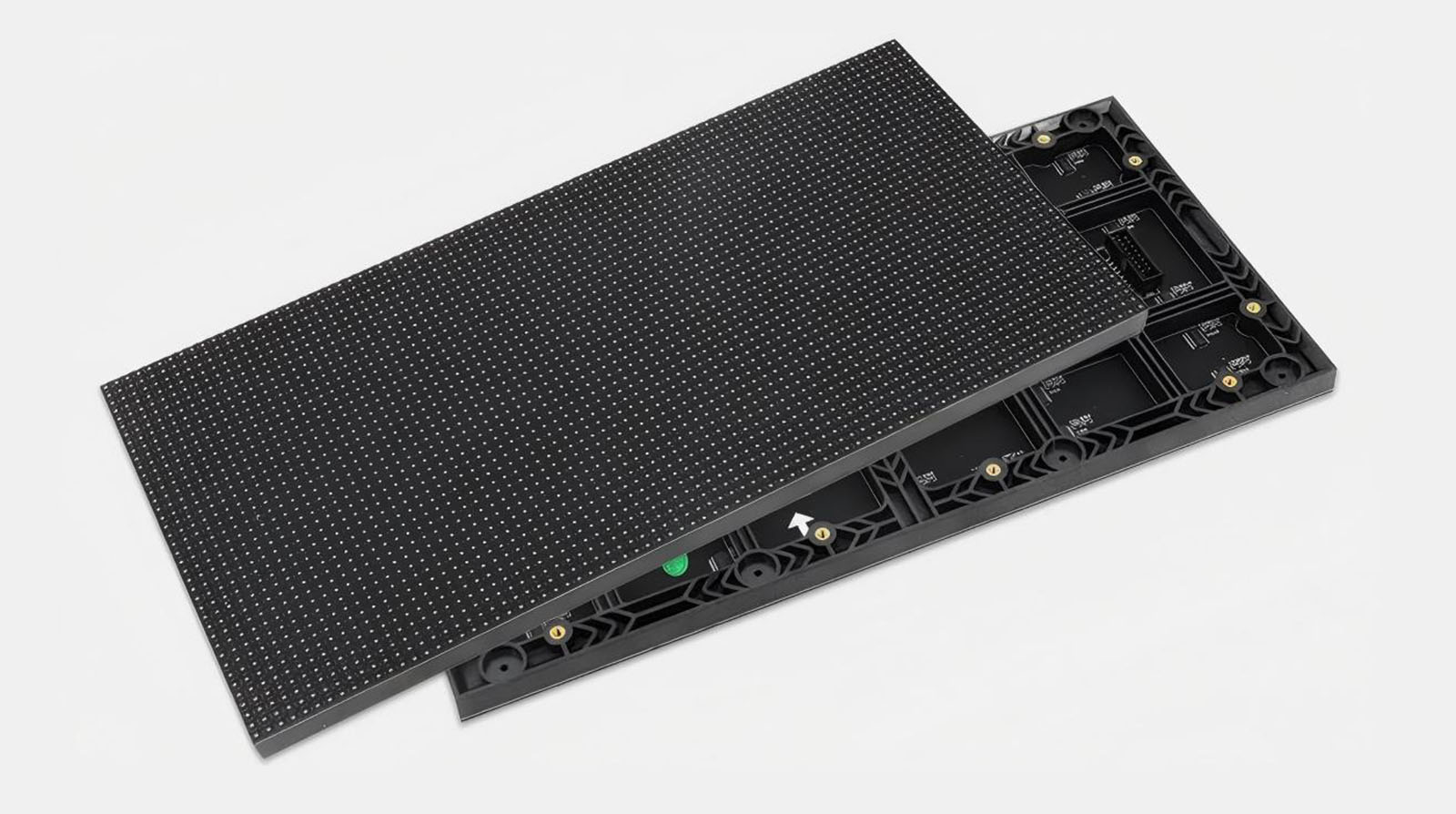

The P4 indoor LED module features the latest black 2121 LED technology, providing deeper blacks and outstanding contrast for vivid image representation. The highly stable driver ICs provide seamless control over LEDs, delivering flicker-free performance with a high refresh rate of up to 3840Hz. Furthermore, the 1.2mm thick multi-layer corrugated board with high elasticity prevents module deformation, maintaining screen flatness.

High refresh rates eliminate display flicker, ensuring moving images look smooth. This makes P4 modules optimal for dynamic applications such as broadcasting studios, retail spaces, stages, churches, control rooms, and commercial advertisement setups where vibrant, seamless content is key.

Key Features

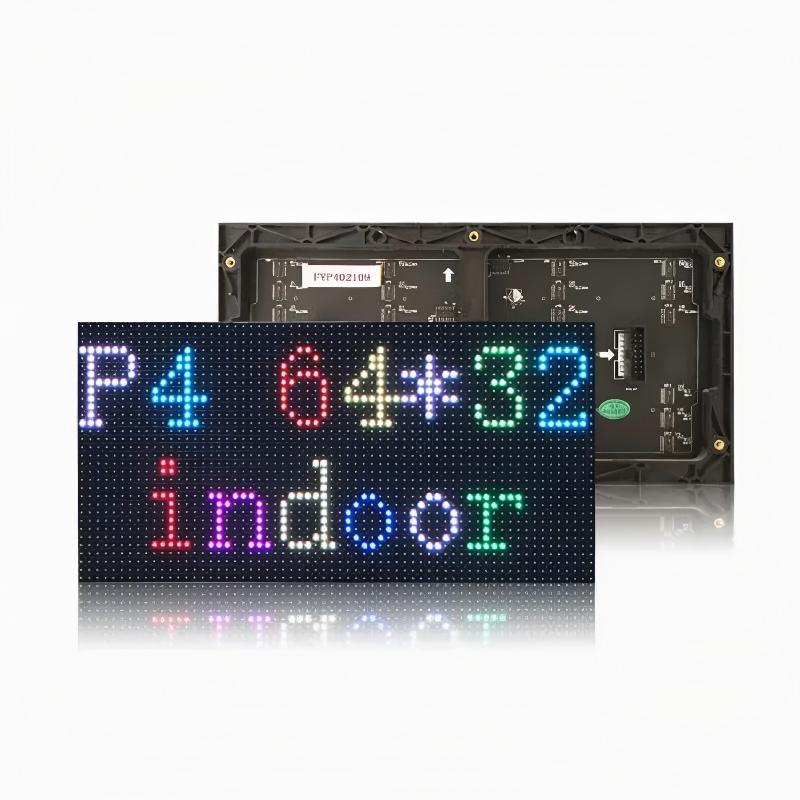

Resolution Options: 2,048 dots (64×32 pixels) or 3,200 dots (80×40 pixels) depending on configuration.
Pitch: 4mm pixel pitch for excellent visual clarity.
Dimensions: Available in 320mm x 160mm (12.6″ x 6.3″) or 256mm x 128mm (10.1″ x 5.0″).
Viewing Angle: Extra-wide 160-degree horizontal visibility for indoor environments.
Power Input: 5V regulated power input.
Color Configuration: 1R1G1B full-color display panel.
Scan Mode: Constant current 1/16 or 1/20 scan.
Brightness: 600-1,000 nits output.
Color Uniformity: High-performance driver ICs ensure seamless color replication and image stability.
Contrast: Impressive contrast ratio up to 5000:1.
Refresh Rate: High refresh rate from 1920Hz up to 3840Hz for flicker-free viewing.

What is P4 Resolution?

Provide your wall dimensions or project budget, and we can help you determine the exact number of modules required for your display setup!

Frequently Asked Questions (FAQ)

What does "P4" mean in an LED display?

P4 indicates a pixel pitch of 4mm, which represents the distance between the center of one LED pixel and the center of the adjacent pixel. This spacing translates to 62,500 pixels per square meter.

What is the optimal viewing distance for a P4 LED screen?

The optimal viewing distance for a P4 LED screen is 4 meters (approximately 13 feet) or more. This makes it perfect for medium-sized indoor spaces like churches, retail outlets, and stages.

How does a P4 LED display compare to a P3 LED display?

P3 LED displays feature a higher pixel density (around 111,111 pixels/m²) compared to P4 (62,500 pixels/m²). P3 offers higher clarity at closer viewing distances but generally comes with a higher cost. P4 is more cost-effective for larger viewing distances.

Are P4 LED modules suitable for outdoor use?

No, these specific P4 LED modules are designed for indoor applications, featuring an IP40 rating and a brightness range of 600 to 1,000 nits, which is optimized for controlled indoor lighting.

What are the key advantages of high refresh rate (3840Hz) in P4 displays?

A high refresh rate of 3840Hz eliminates screen flickering. This is crucial for environments using cameras (like TV studios or live streams) to ensure clean images without black scan lines.

What dimensions are available for P4 LED modules?

The standard P4 LED modules are available in sizes of 320mm x 160mm (with a resolution of 80x40 dots) or 256mm x 128mm (with a resolution of 64x32 dots).
