Currently, entertainment venues are increasingly upgrading their private rooms and lobby lighting, a trend that has persisted for three to five years. For clients, cost control is paramount. Introducing LED screens significantly increases costs, and small-area installations often fail to achieve optimal ambient lighting effects. Furthermore, specialized installation is essential, and the labor costs are substantial. Furthermore, the use of iron pipe structures necessitates significant alterations to the overall environmental structure, thereby substantially increasing renovation costs.
Because this product employs a modular, interlocking installation method, installation can be performed by ordinary trades, and no major modifications to the overall environmental structure are required; simply maintaining a flat surface or light pole is sufficient. Therefore, the product solves both the problems of complex and labor-intensive installation and the visual impact of the overall ambient lighting effect, effectively acting as a catalyst for the overall ambient lighting design.
| Voltage | AC110-220V, DC5V |
|---|---|
| Install Recommendation | Light with beam installed on the roof, without beam on the wall |
| Power | 1x light 15w 4x lights with beam 60w, 4x lights without beam 24w 6x lights with beam 90w, 6x lights without beam 36w 9x lights with beam 135w, 9x lights without beam 54w |

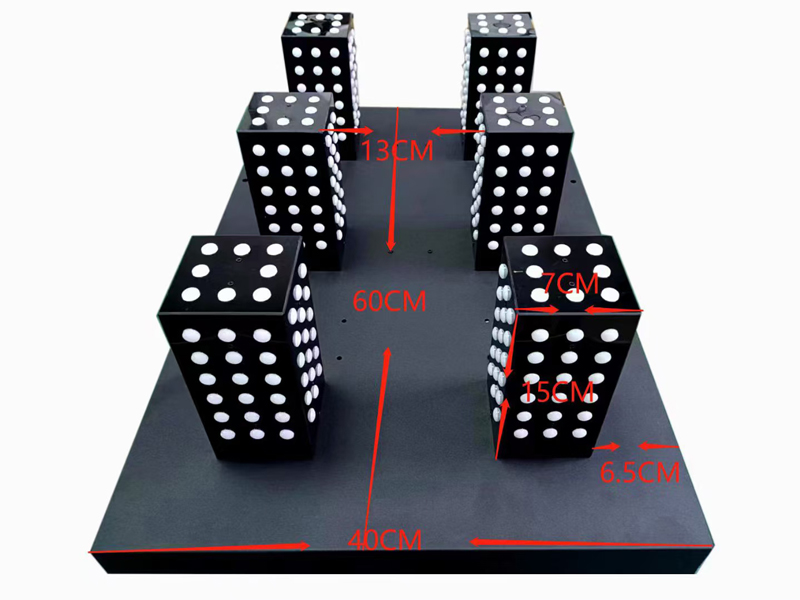

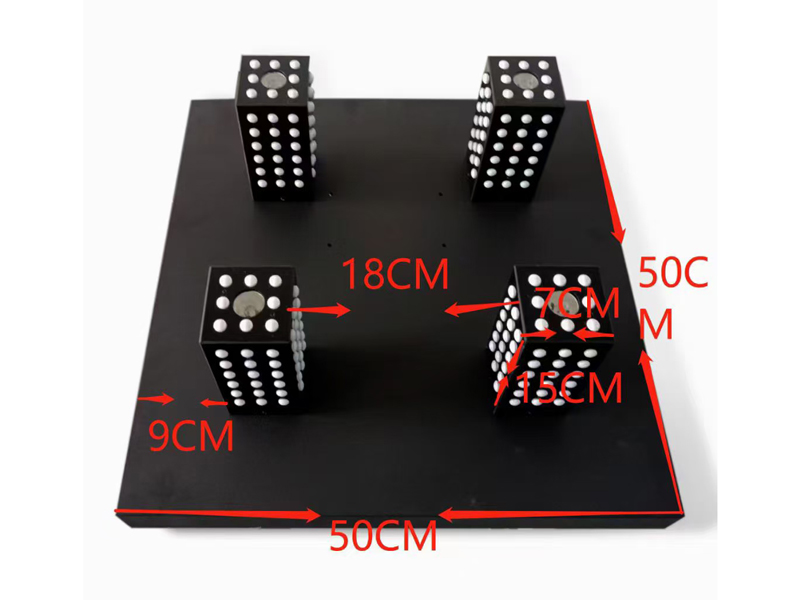

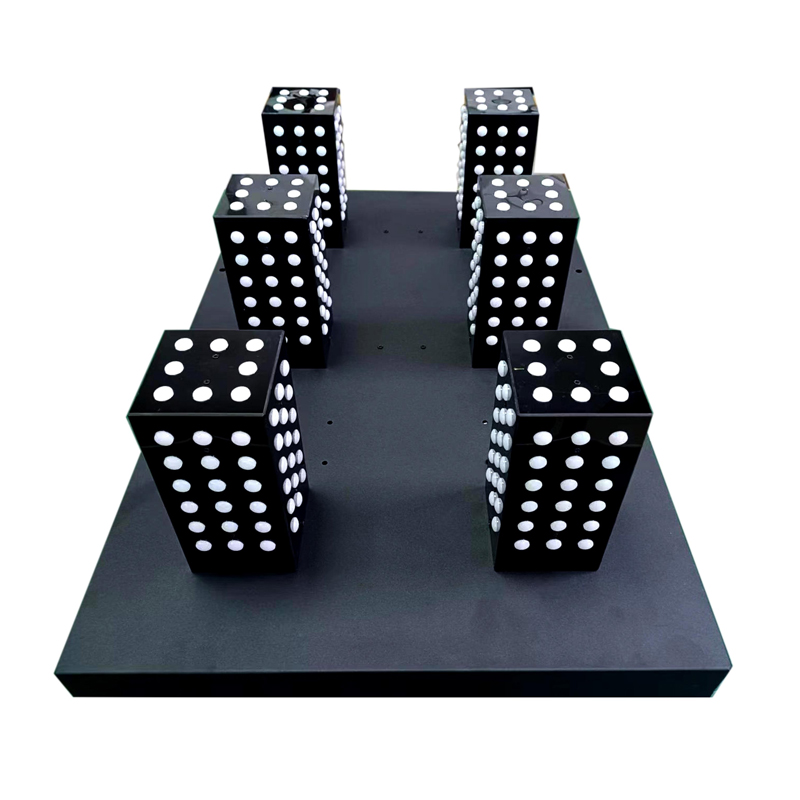

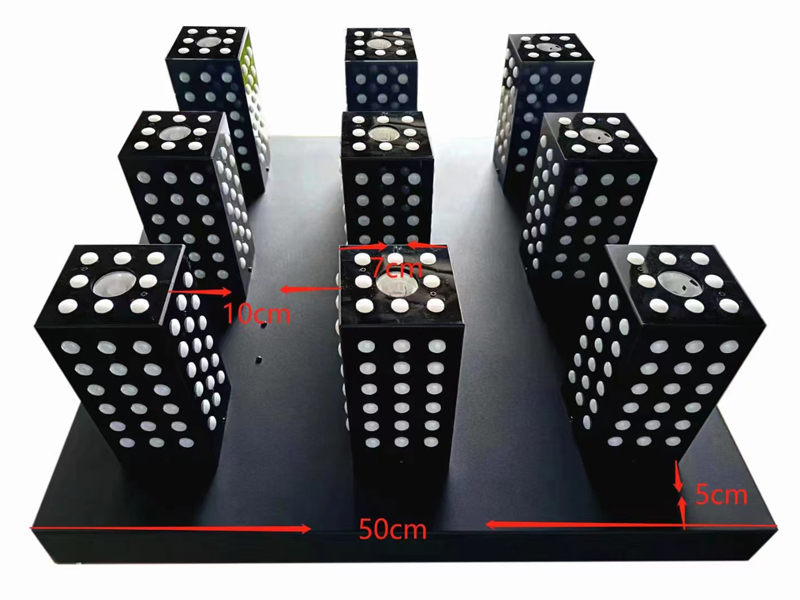

| Dimensions | 1x light: 127*127*233 mm 4x lights : AC110 / 220V: 500*500*250 mm, DC 5V: 500*500*180 mm 6x lights: AC110 / 220V: 400*600*250 mm, DC 5V: 400*600*180mm 9x lights: AC110 / 220V: 500*500*250 mm, DC5V: 500*500*180 mm |
| LED Model | WS2812 |
| Channels | GRB |
| Pixel Count | 1x light: 81 pixels 4x lights with beam 324 pixels, 4x lights without beam 320 pixels 6x lights with beam 486 pixels, 6x lights without beam 480 pixels 9x lights with beam 729 pixels, 9x lights without beam 720 pixels |
| Material | ABS+PC+PCB+LED |
| Control Method | TTL Protocol |
| Weight | 1x light: 0.88KG 4x lights: AC110 / 220V: 6.25KGS, DC 5V: 3.25KGS 6x lights: AC110 / 220V: 6.75KGS, DC 5V: 3.75KGS 9x lights: AC110 / 220V: 7.5KGS. DV 5V: 4.5KGS |
| Waterproof Rating | IP33 |

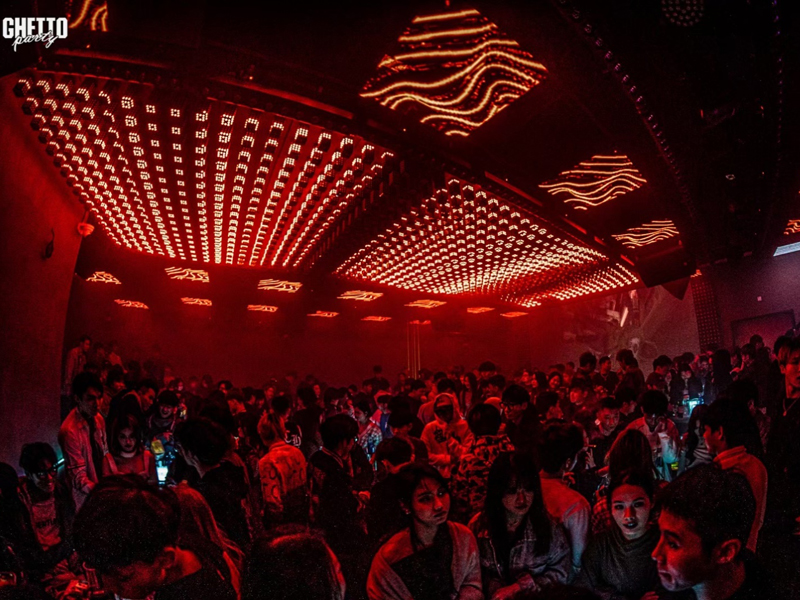

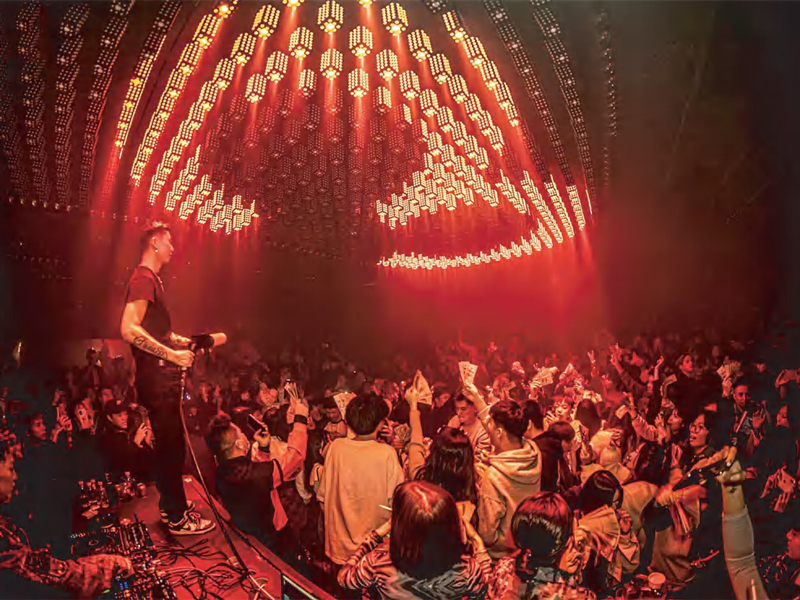

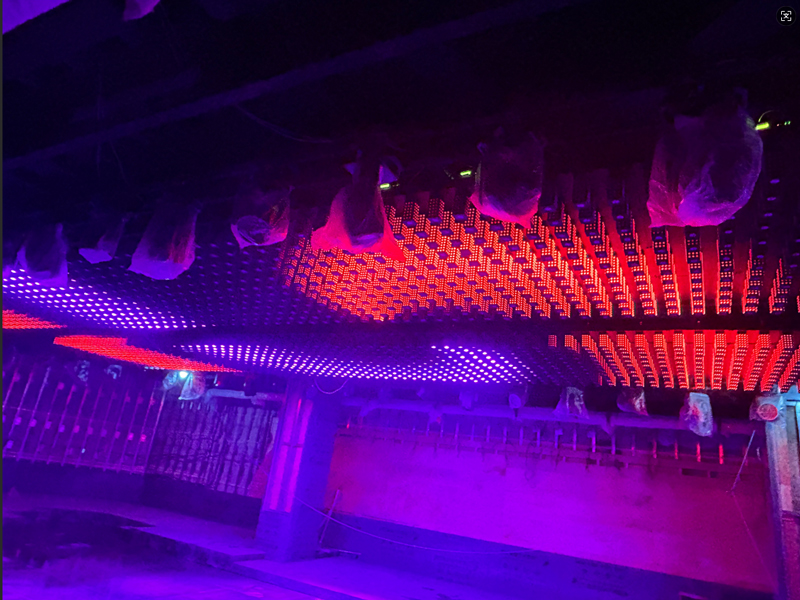

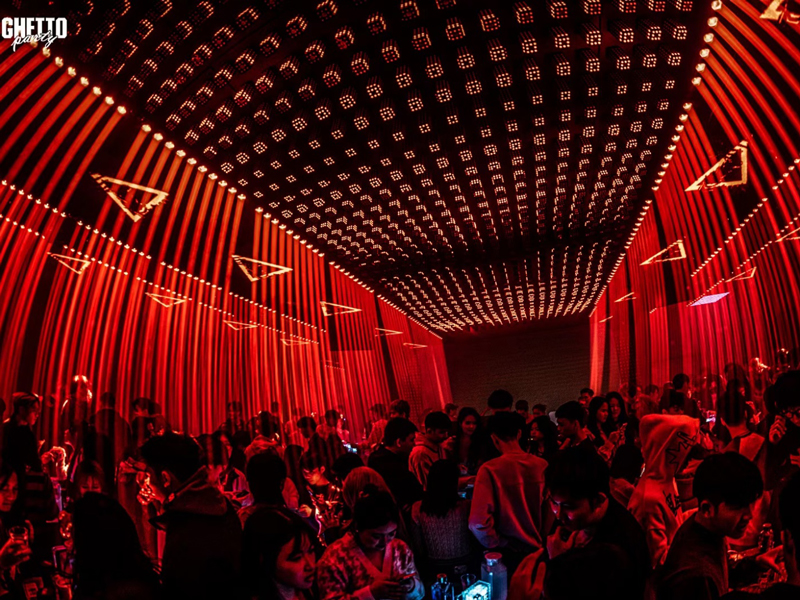

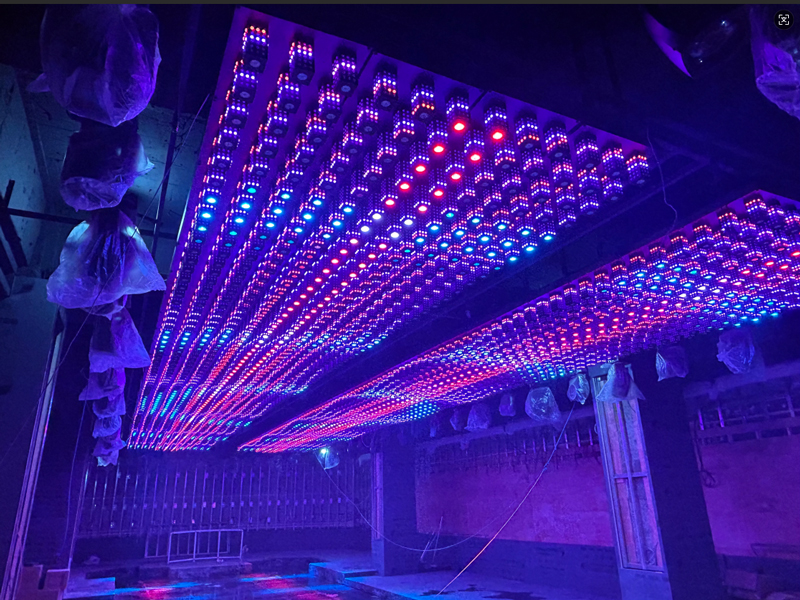

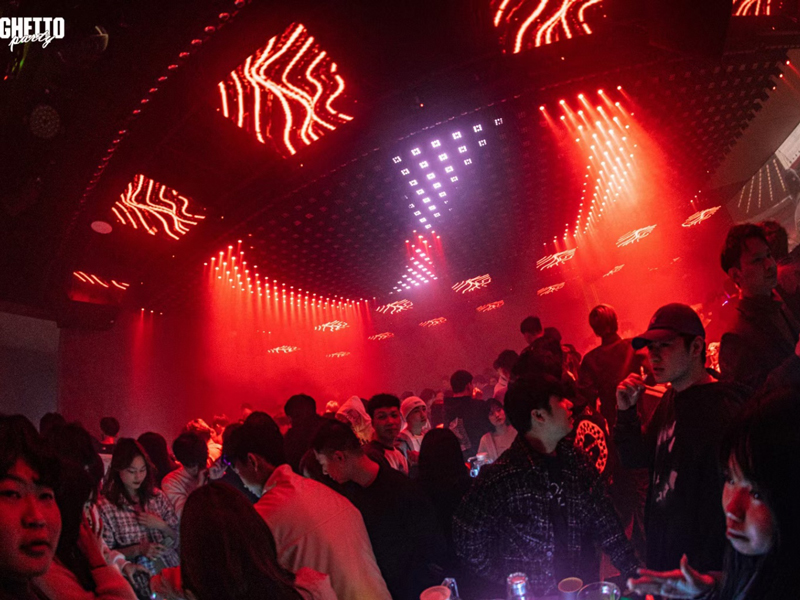

| Applications | 1. Entertainment Section: KTV private rooms, bars, old building lighting upgrades, KTV corridors, lobby backdrops, creative lounges, etc. 2. Stage Section: Stage performances, media events and press conferences 3. Home Section: Private home theaters |

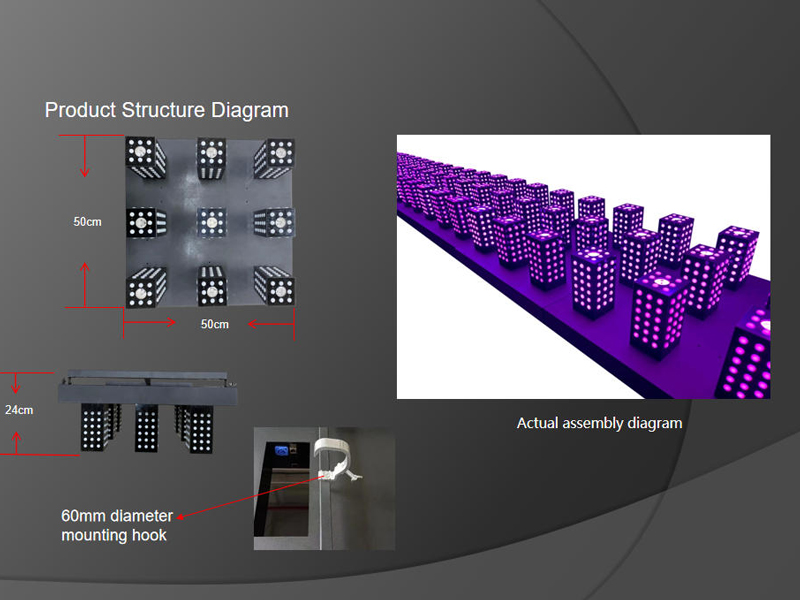

Employing the simplest, fastest, and most versatile installation methods suitable for various environments significantly improves installation efficiency. The latest installation methods are also used, with the product consisting of an installation kit, light hooks, and the main body. The installation kit enhances overall installation efficiency, protects power and signal cables, and assists in product positioning. With rising labor costs, especially for professional installations, the kit installation method is suitable for a wide range of users.

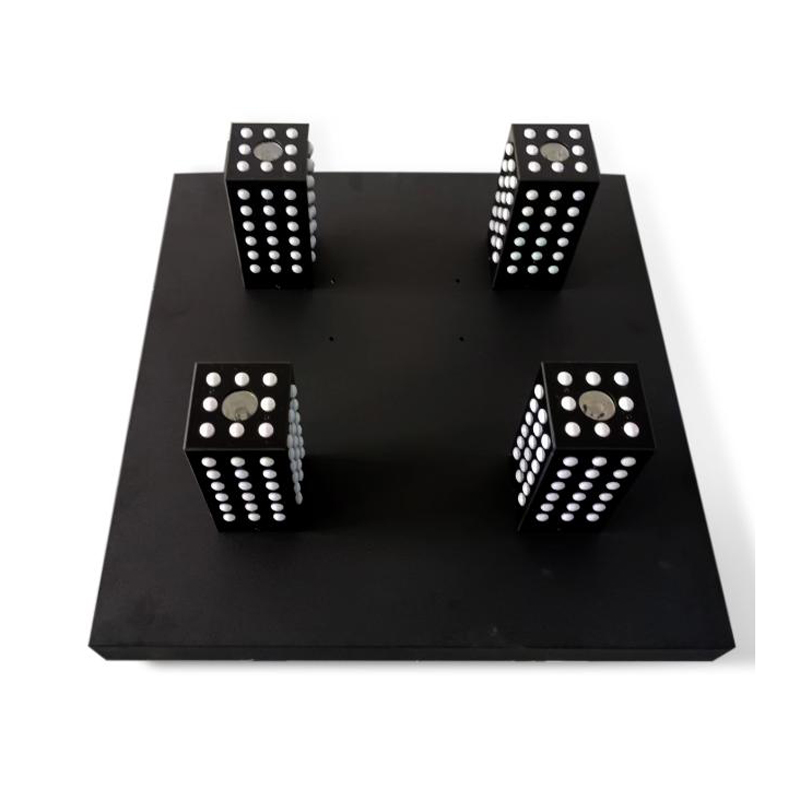

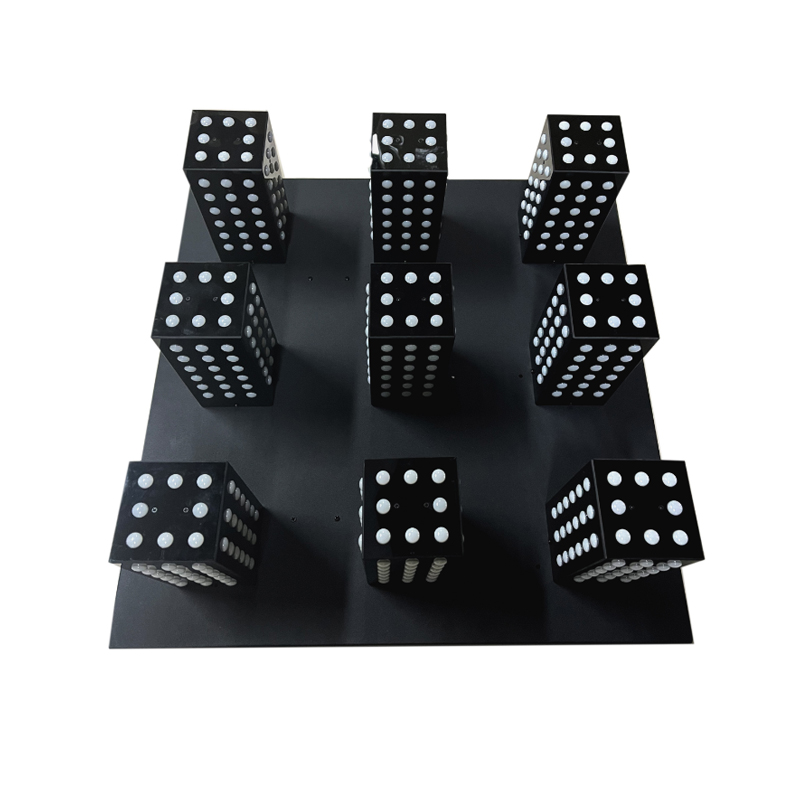

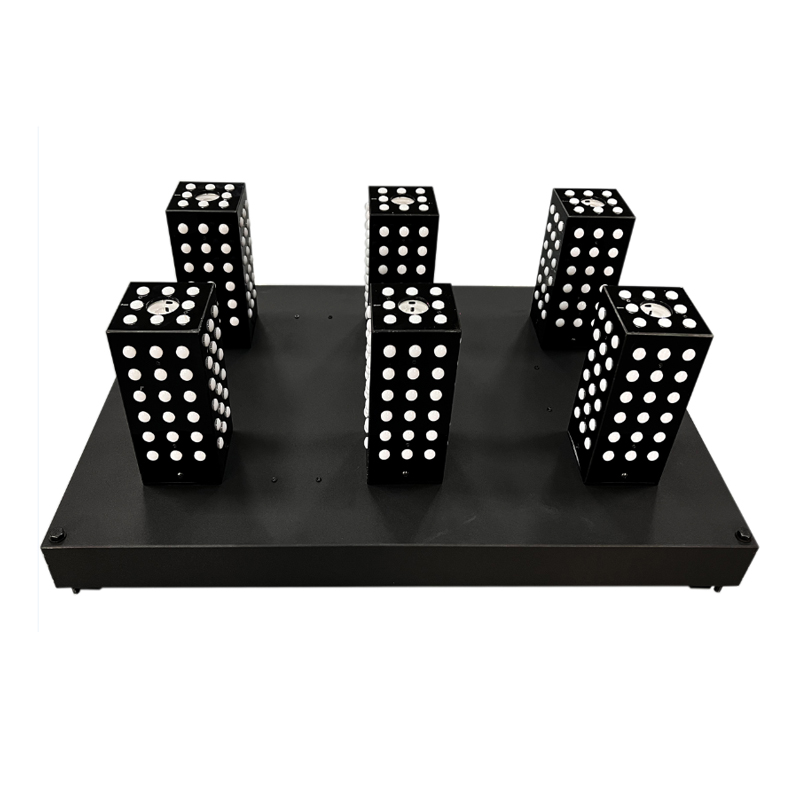

The rectangular structure allows for excellent arrangement and creates unique effects. The corn-shaped lights utilize a rectangular structure, allowing for various combinations to form different shapes. Considering on-site control, during assembly, only the first matrix needs to be positioned to locate the next matrix, eliminating tedious repetitive point marking and saving technical programming time.

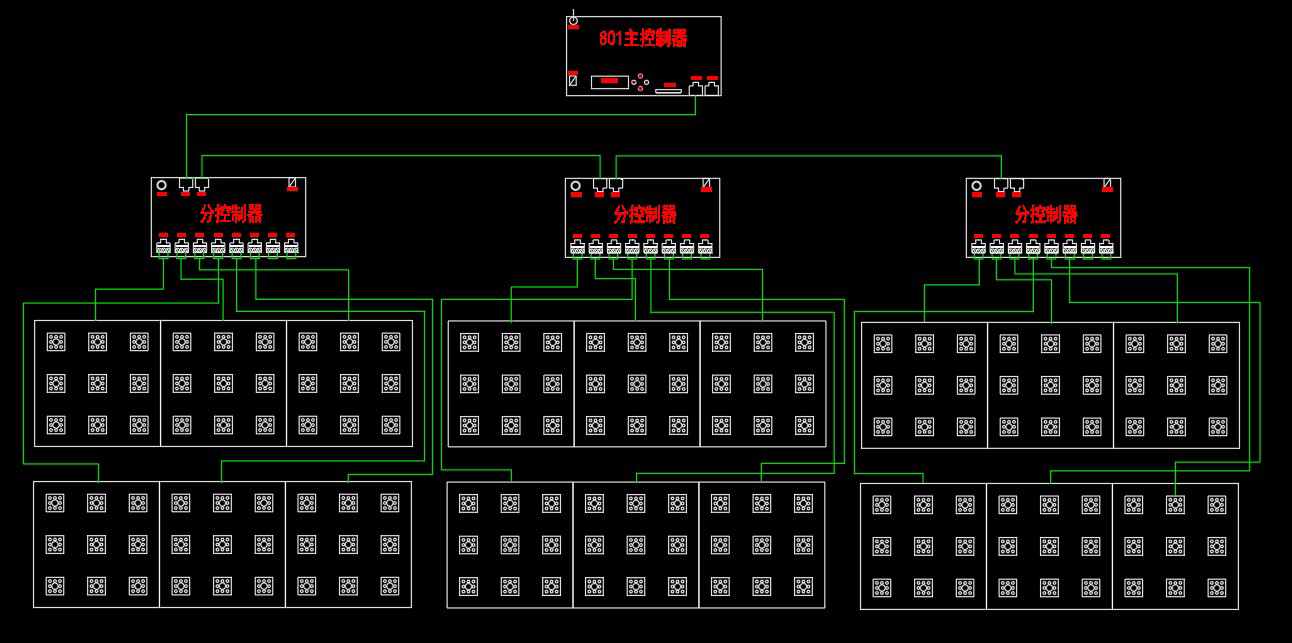

The entire environment is composed of various types of lighting fixtures. Integrating and controlling all the lights is becoming an increasingly popular choice for venues and lighting designers. This allows the entire environment to become a unique highlight and also allows lighting designers to control the lighting of the entire environment in real time, greatly enhancing the interactive experience.
